[Project 1] Boolean Logic

Implementation of some logic gates using only nand gate(and already implemented gates).

Basic Logic Gates

---

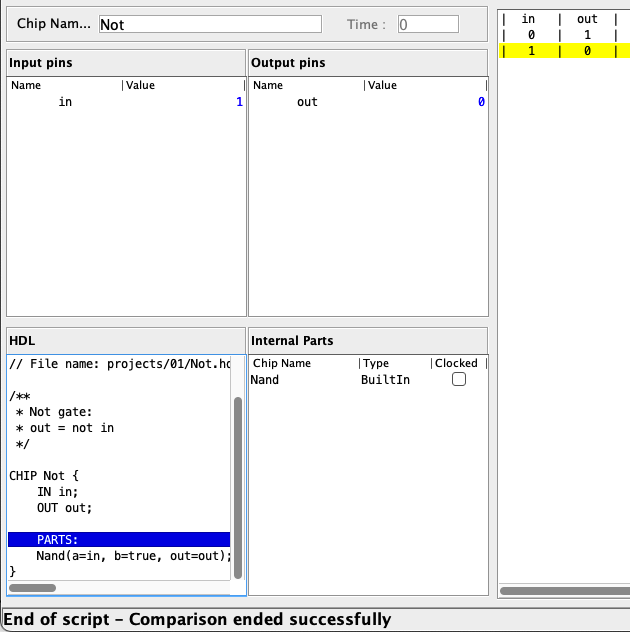

1. Not

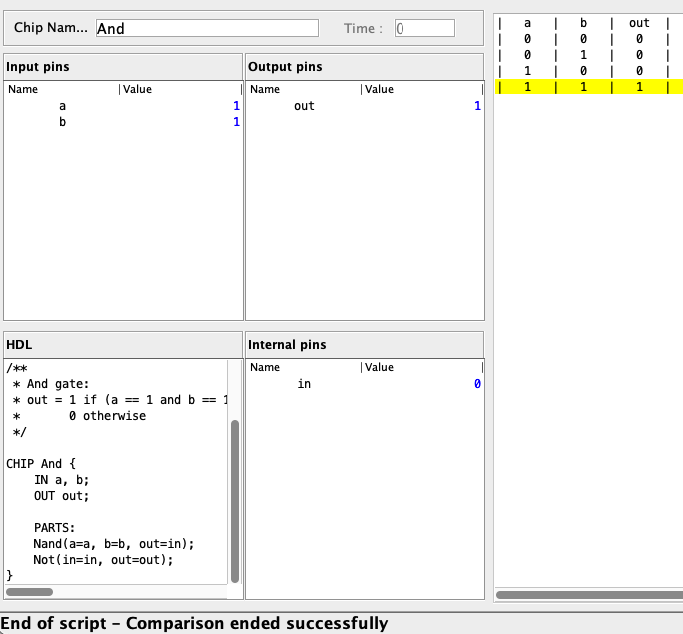

2. And

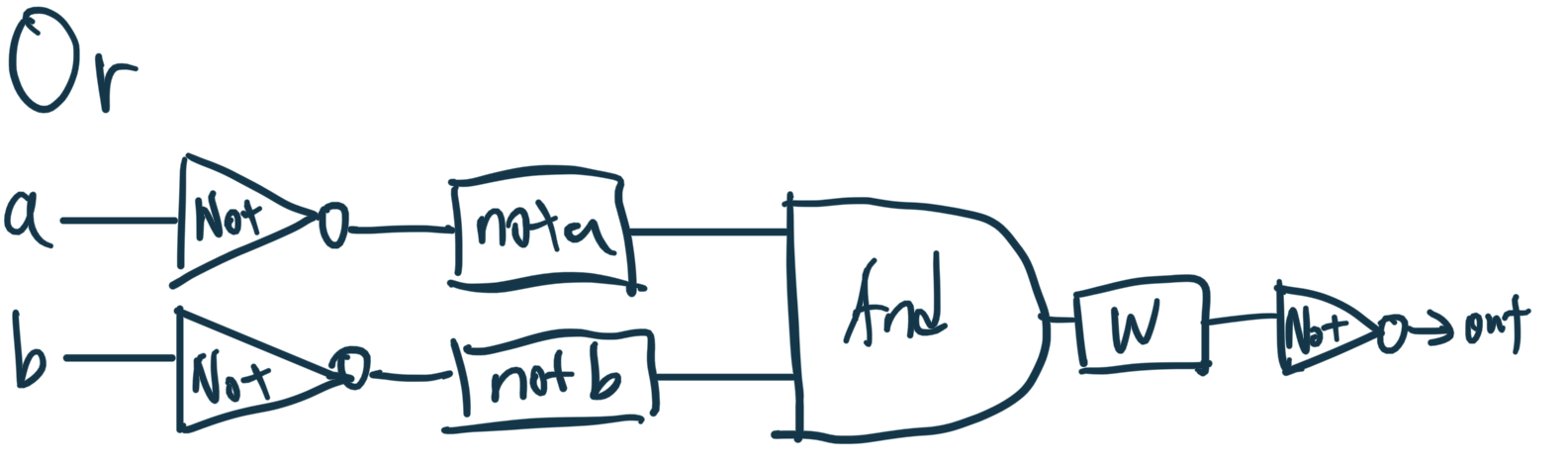

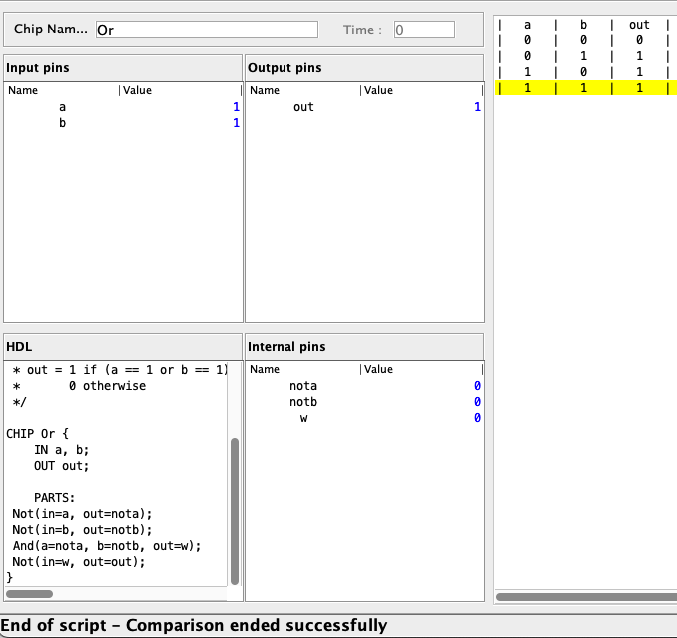

3. Or

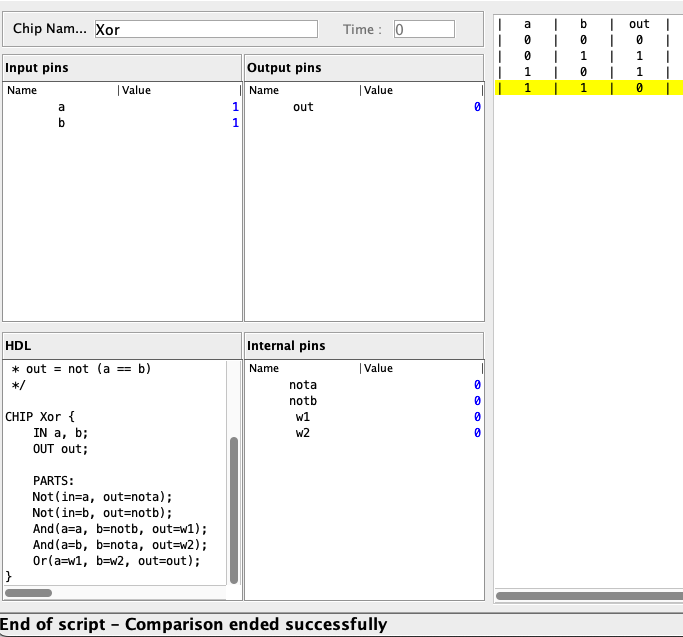

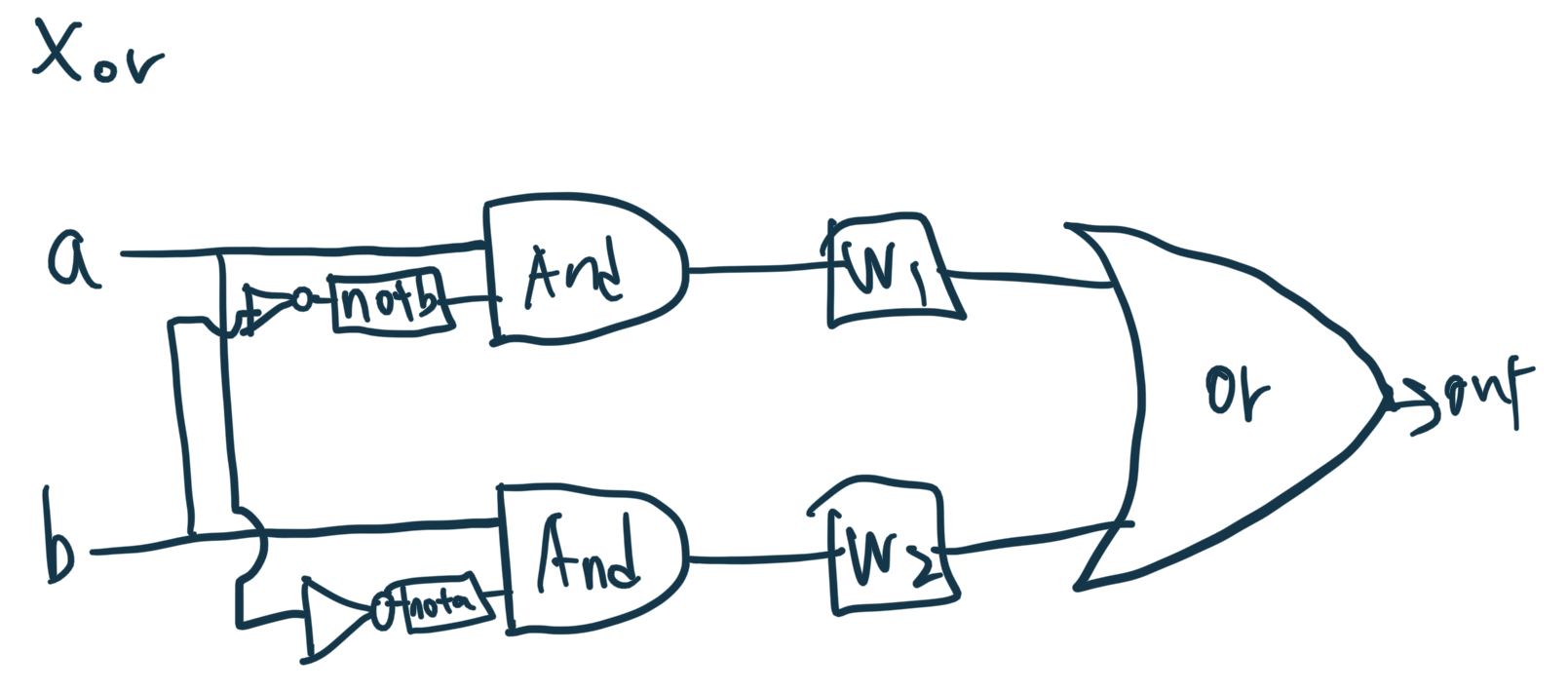

4. Xor

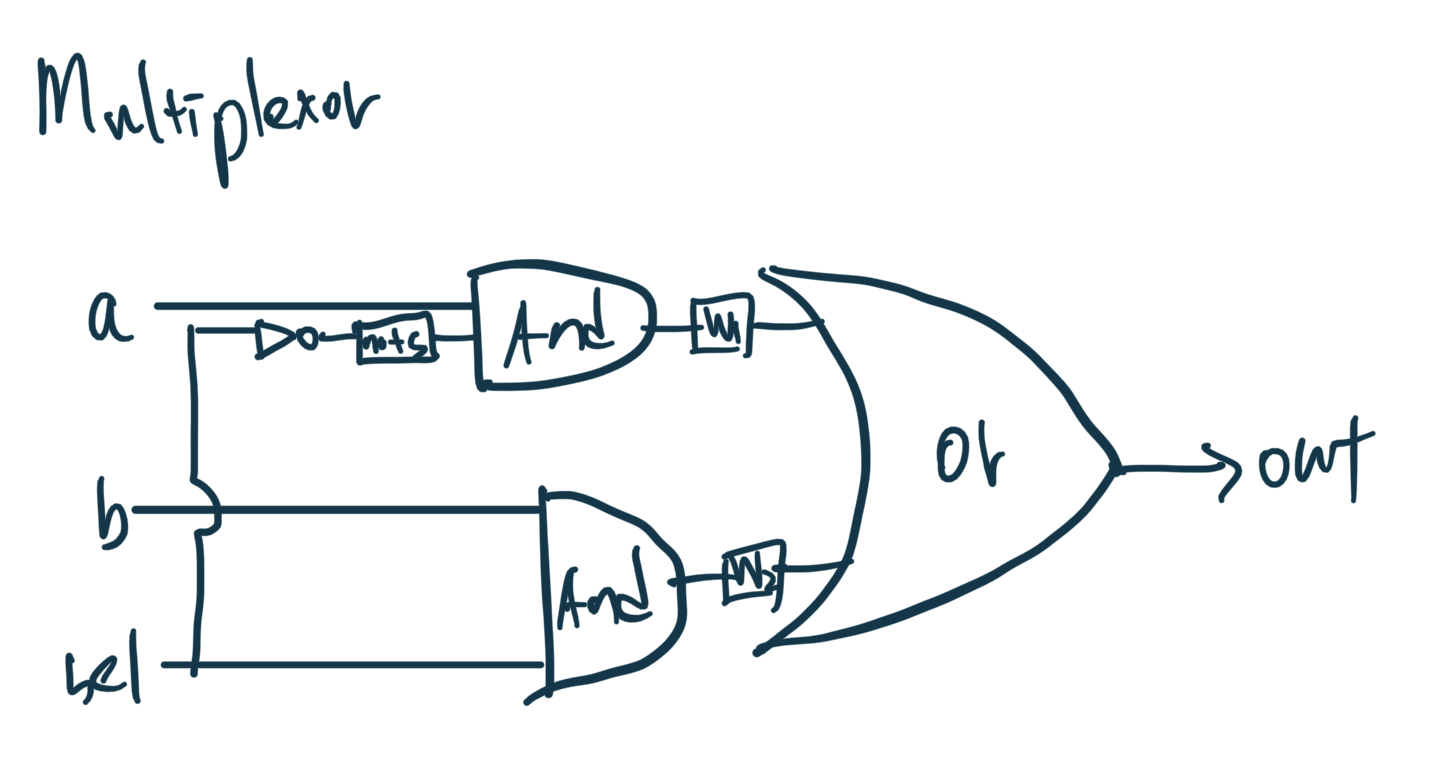

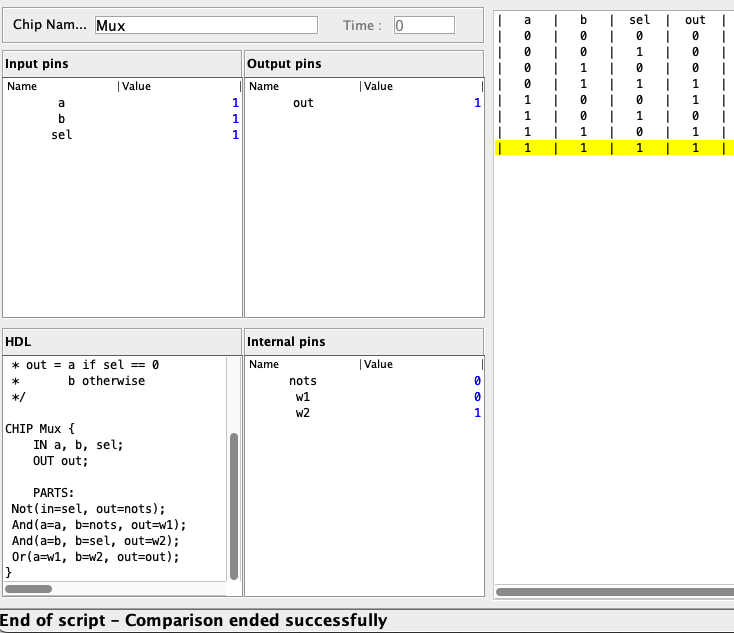

5. Multiplexor

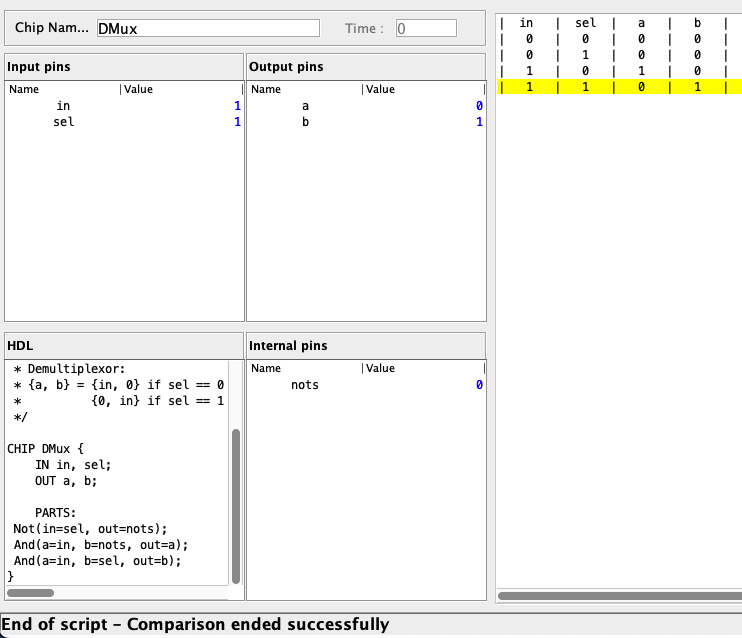

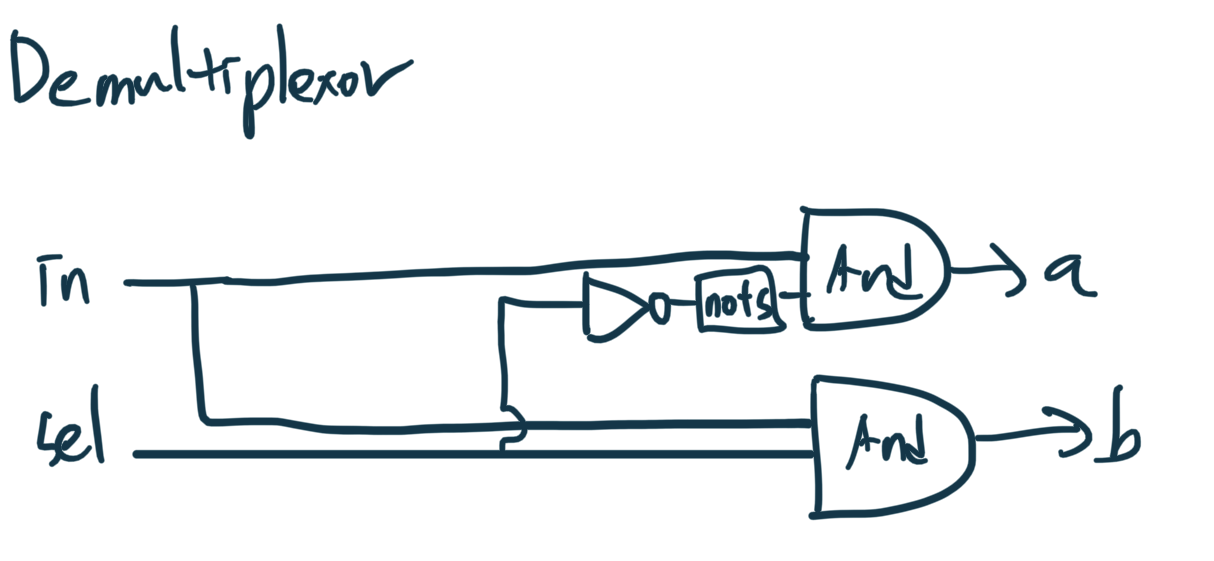

6. Demultiplexor

Multi-Bit Version of Basic Gates

---

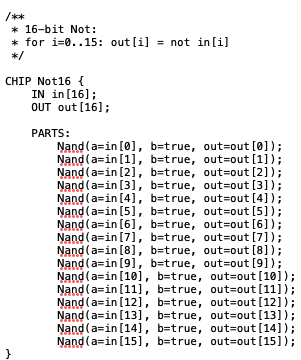

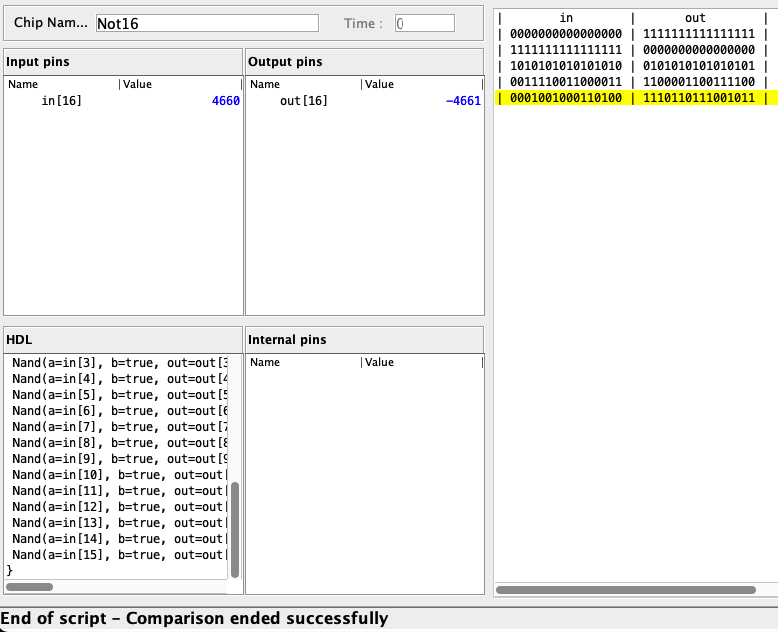

7. Multi-Bit Not

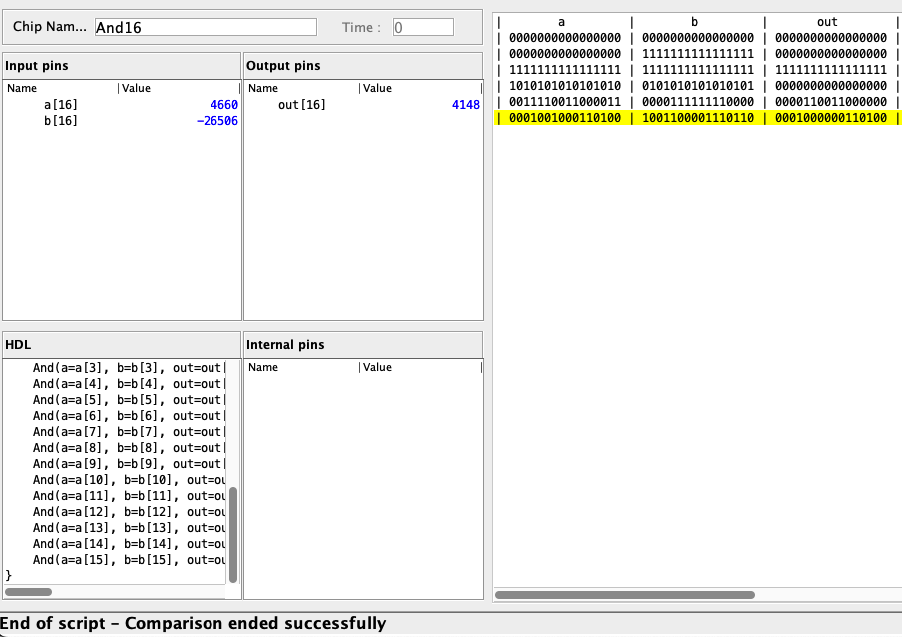

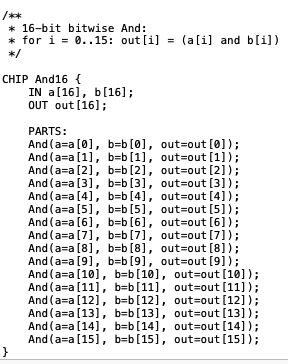

8. Multi-Bit And

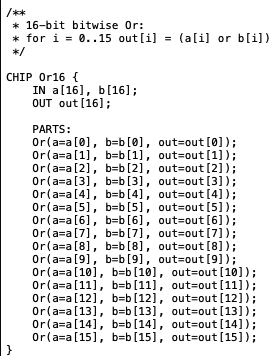

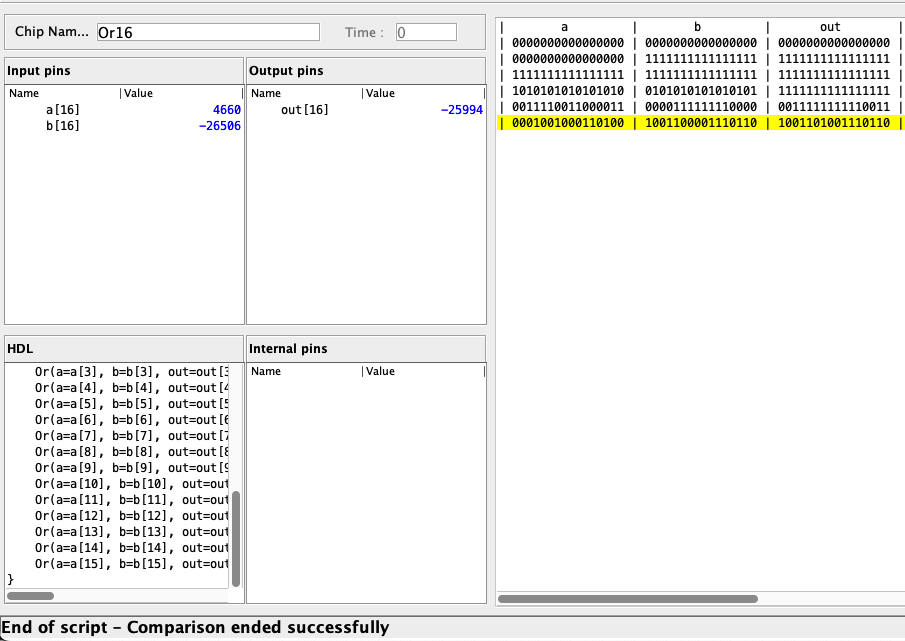

9. Multi-Bit Or

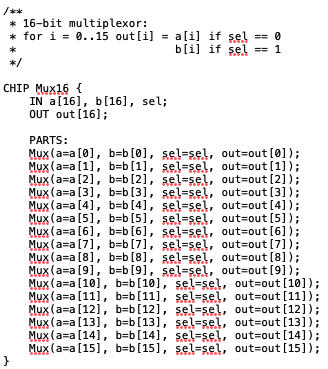

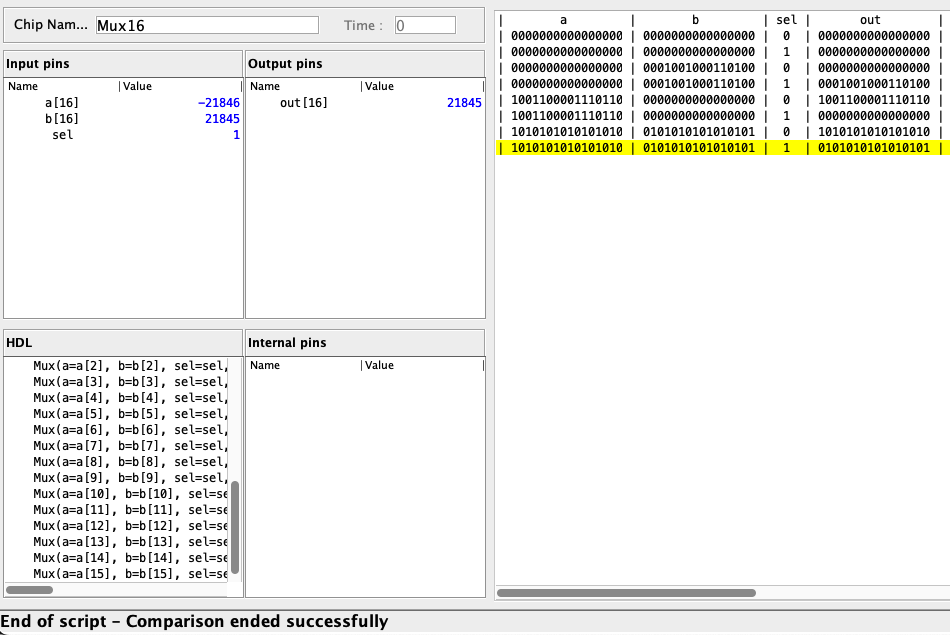

10. Multi-Bit Multiplexor

Multi-Way Version of Basic Gates

---

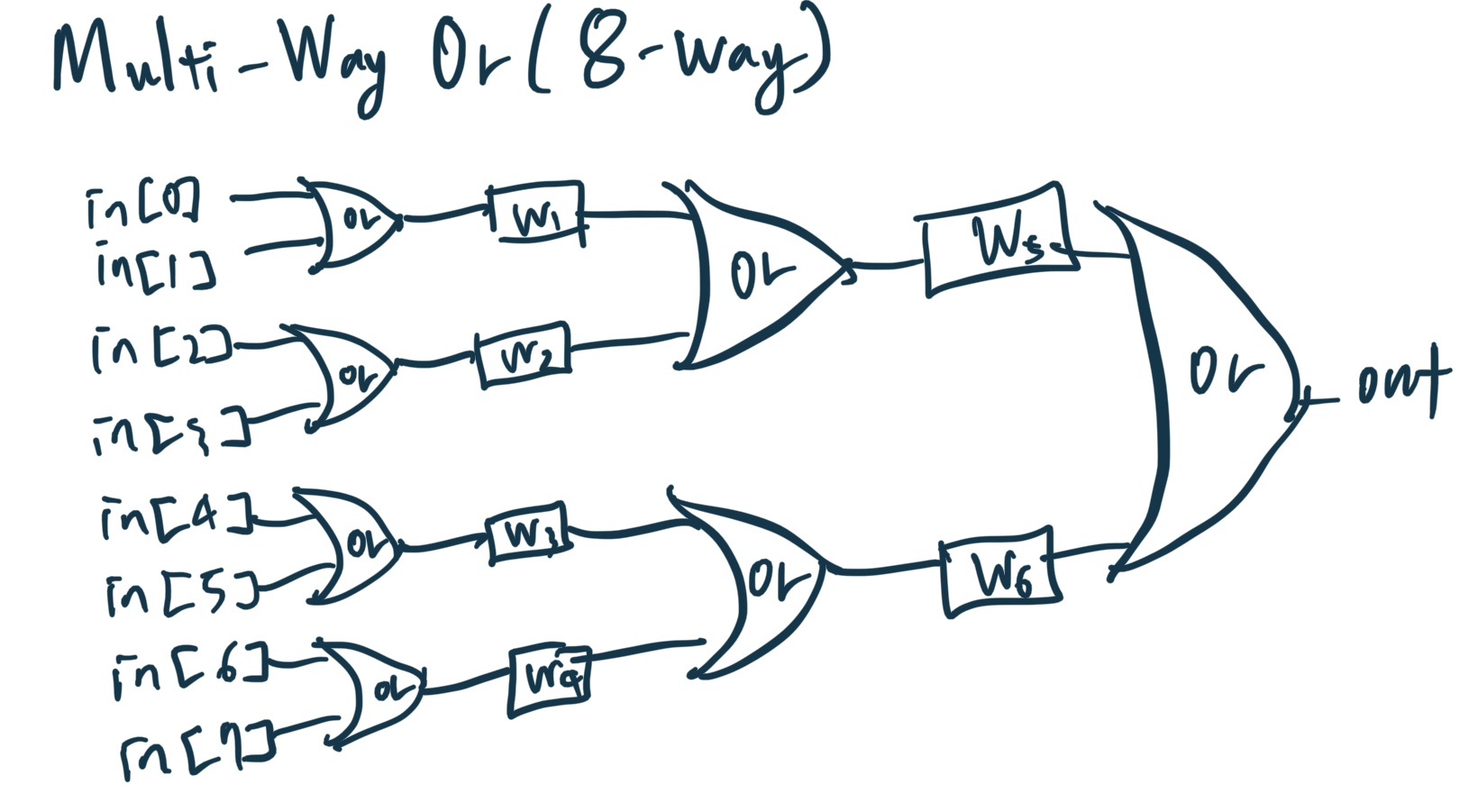

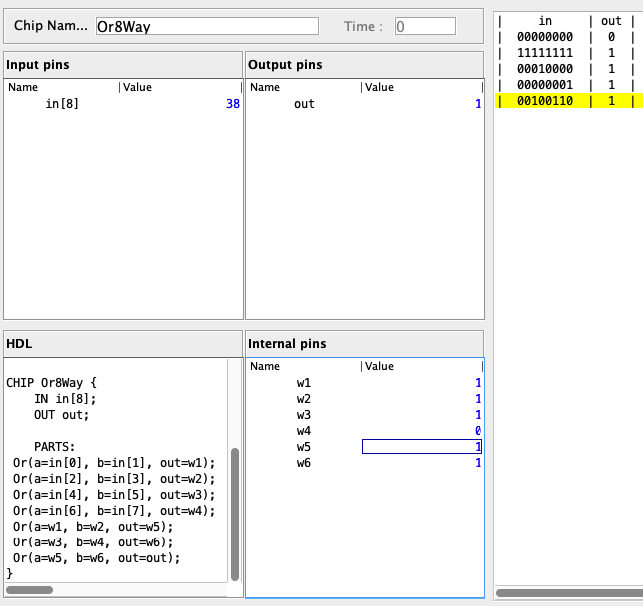

11. Multi-Way Or

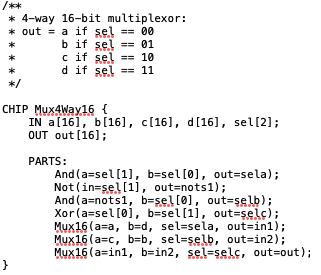

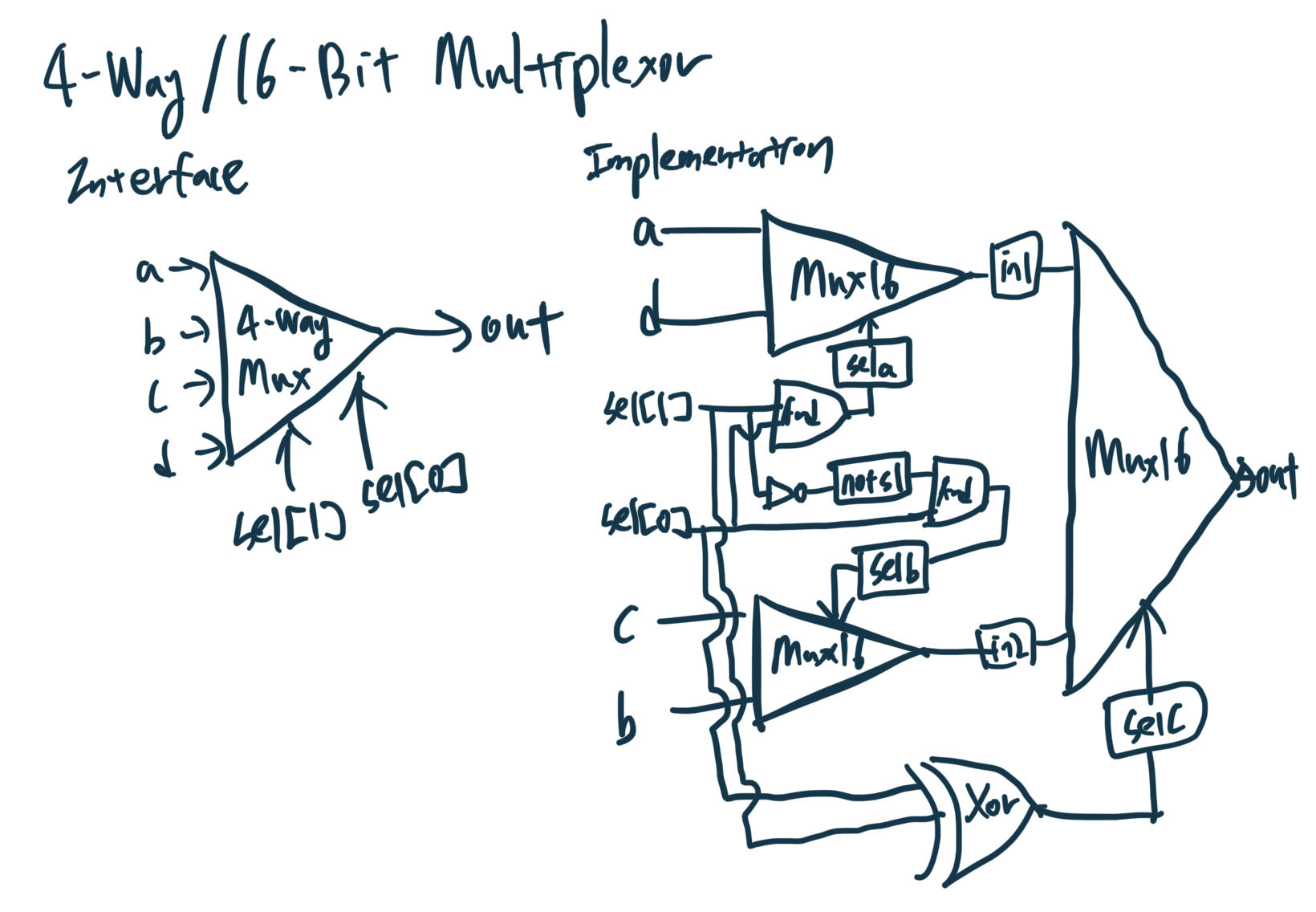

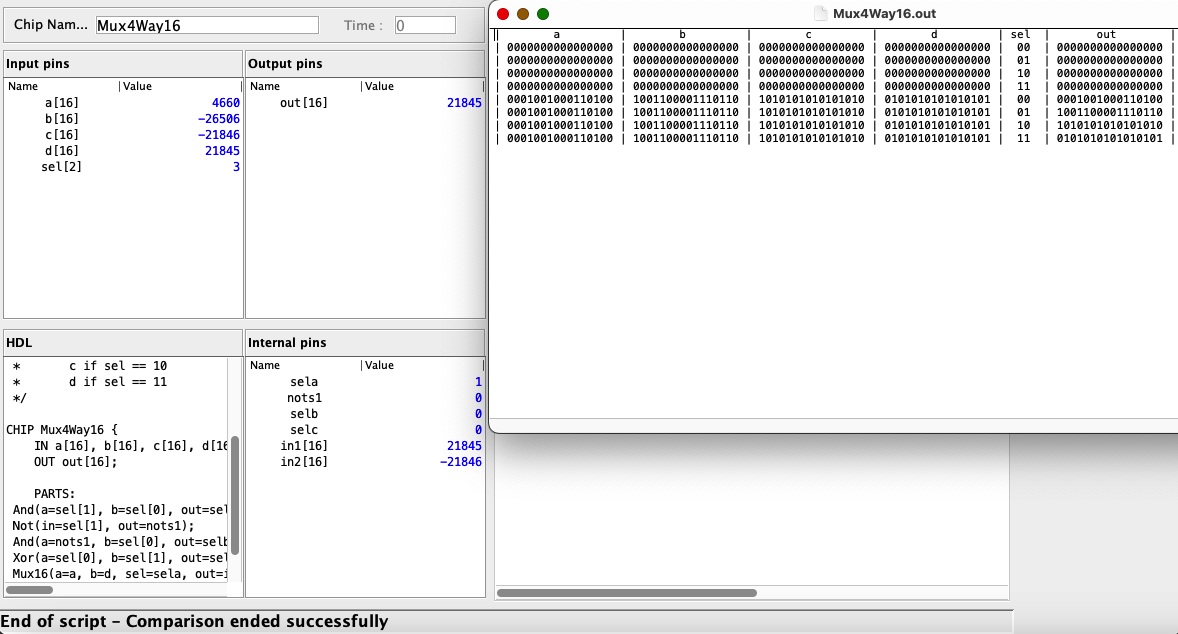

12. Multi-Way/Multi-Bit Multiplexor (4-Way/16-Bit Multiplexor)

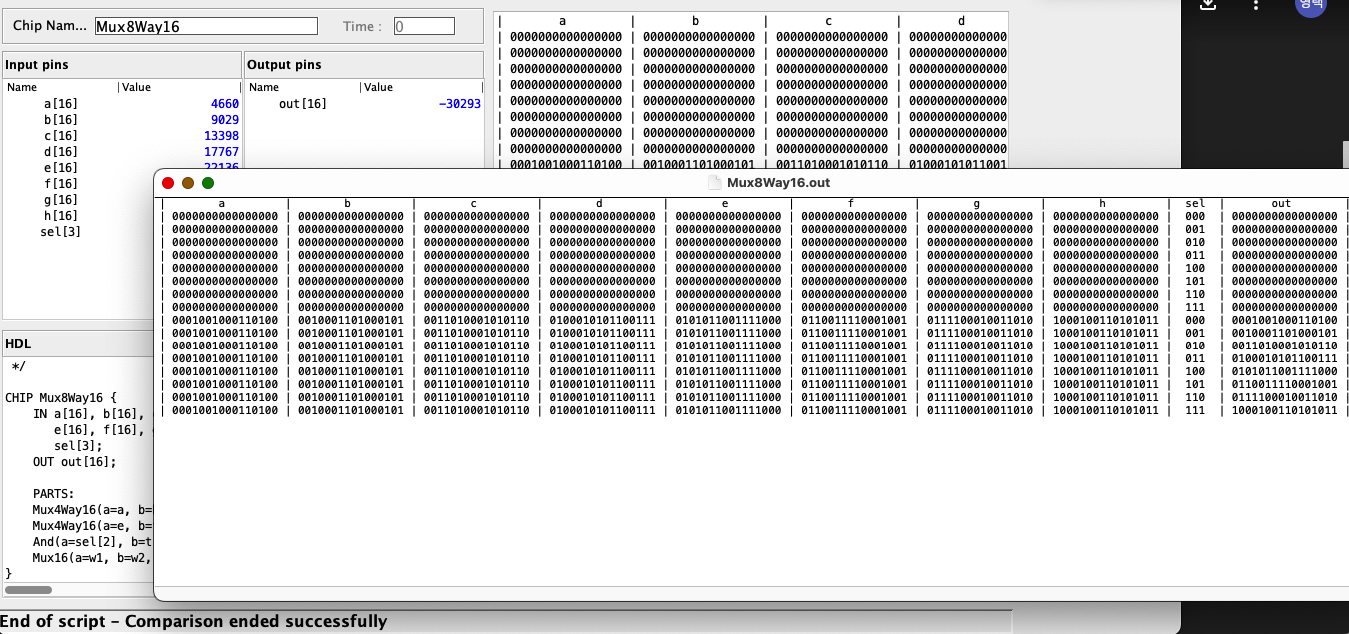

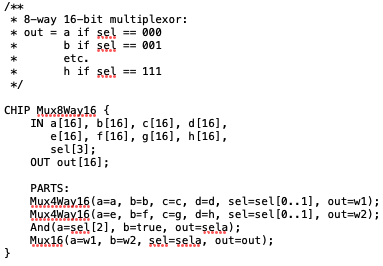

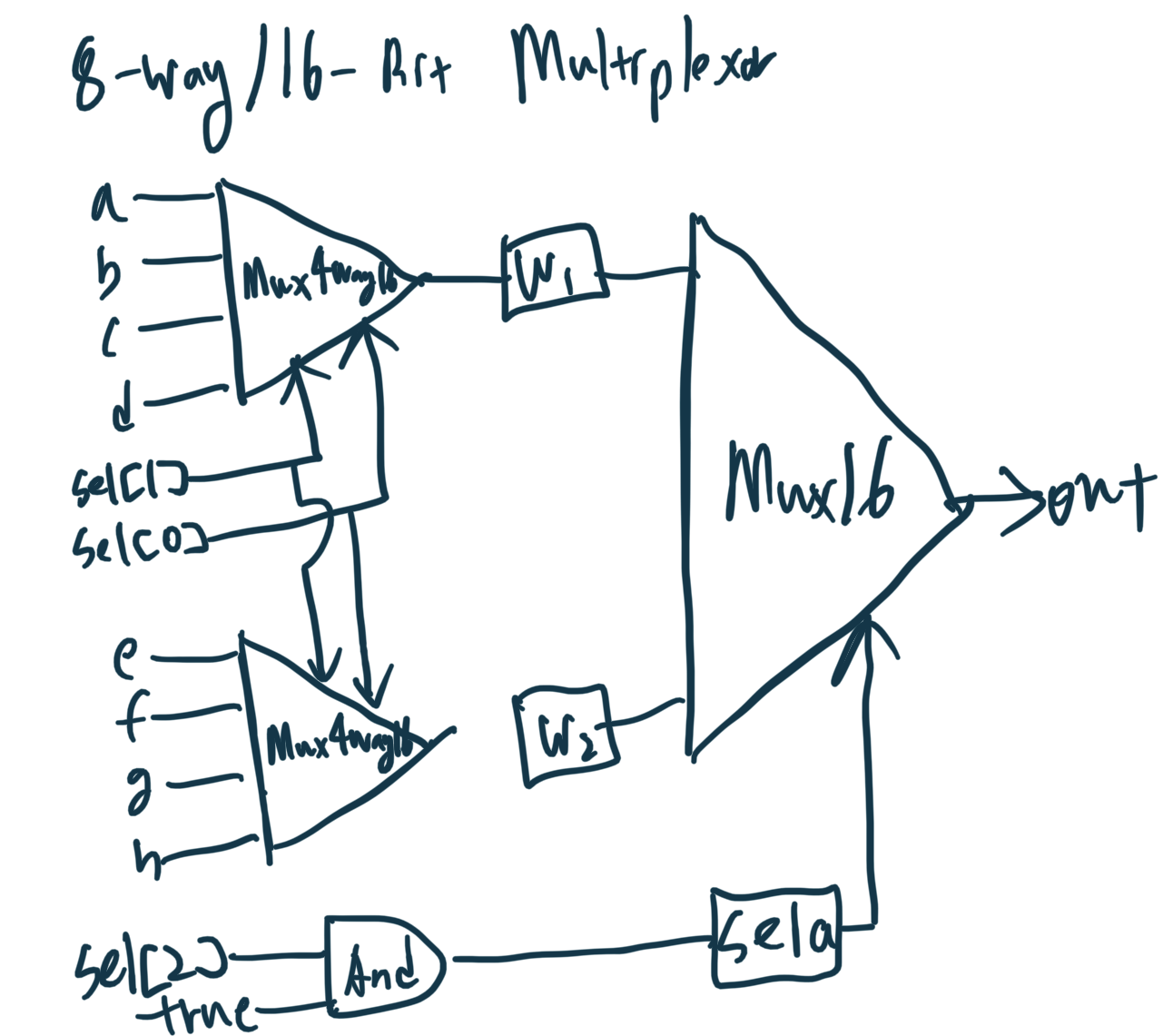

13. Multi-Way/Multi-Bit Multiplexor (8-Way/16-Bit Multiplexor)

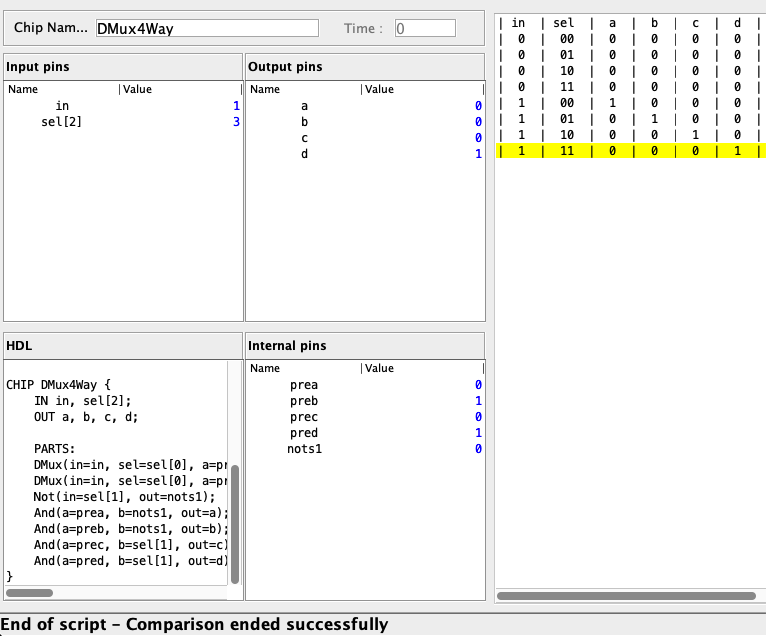

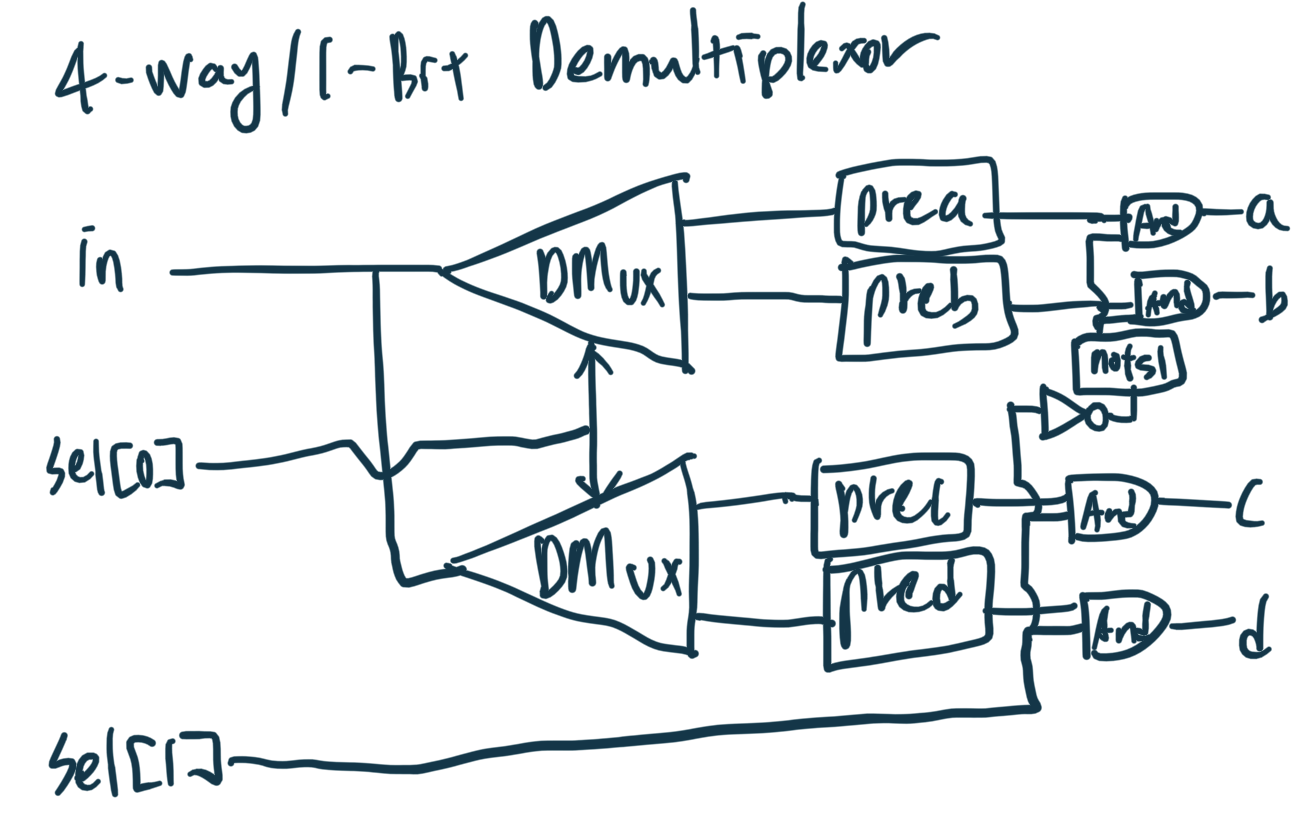

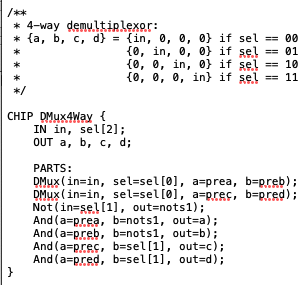

14. Multi-Way/Multi-Bit Demultiplexor (4-Way/1-Bit Demultiplexor)

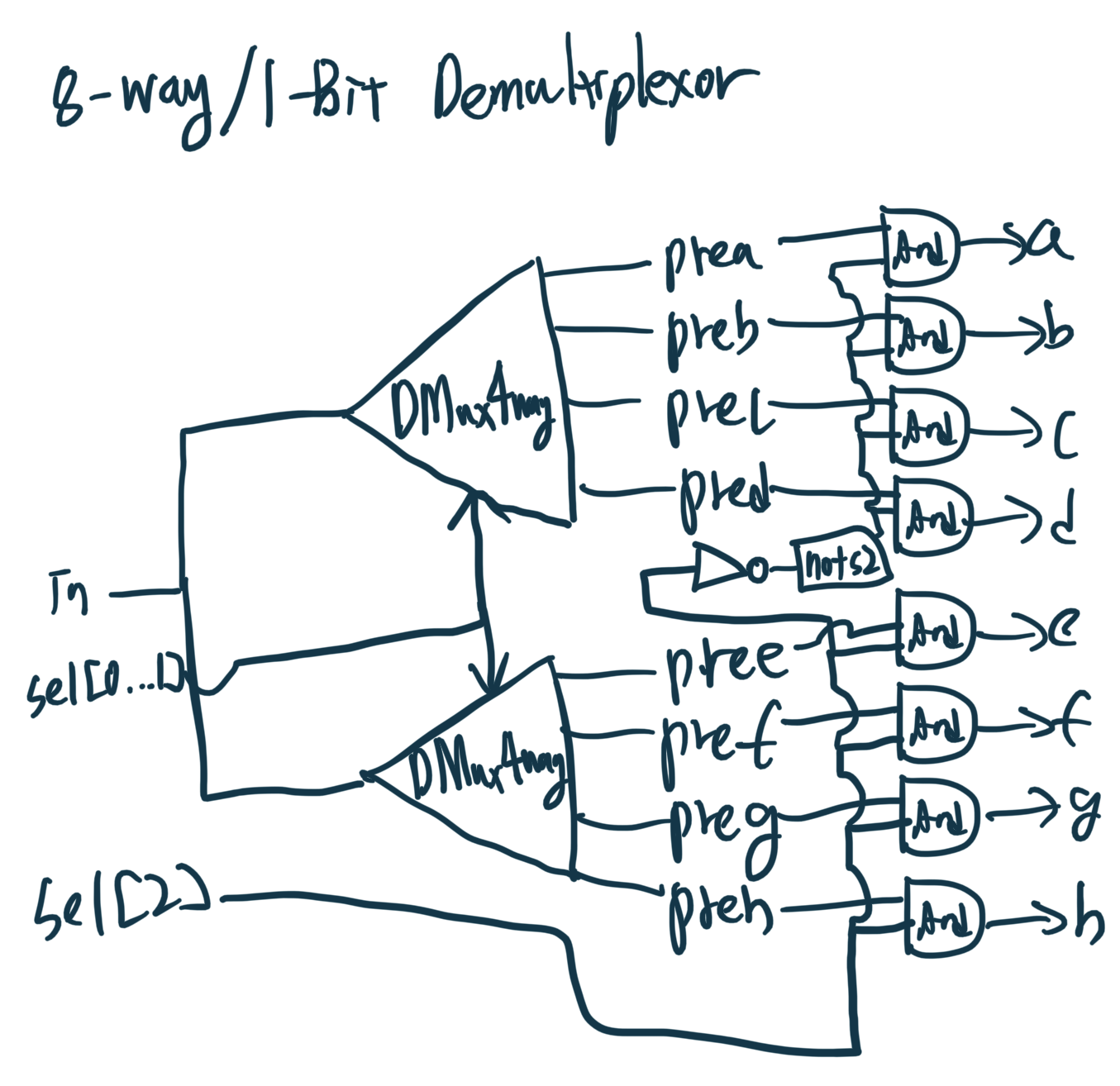

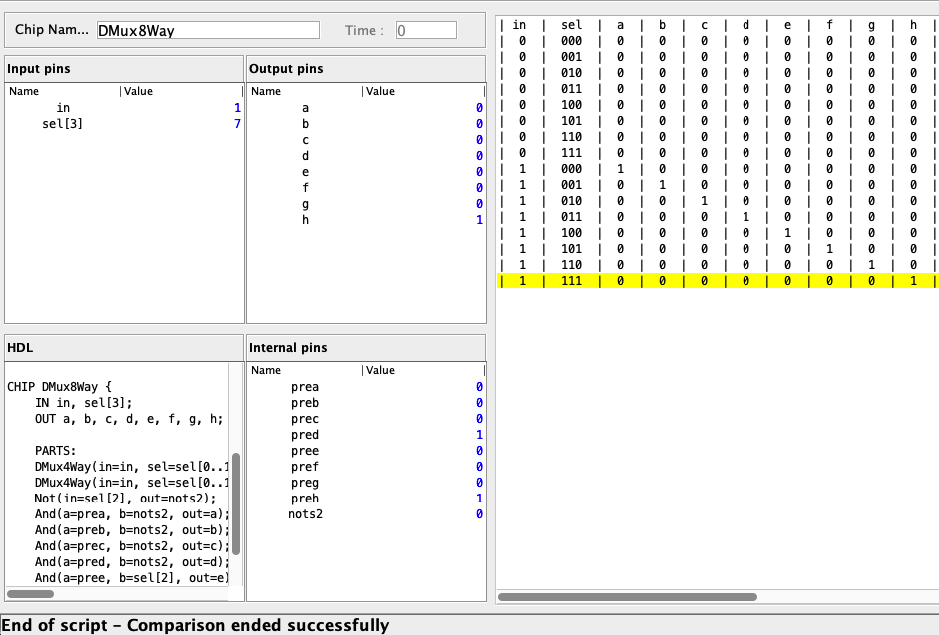

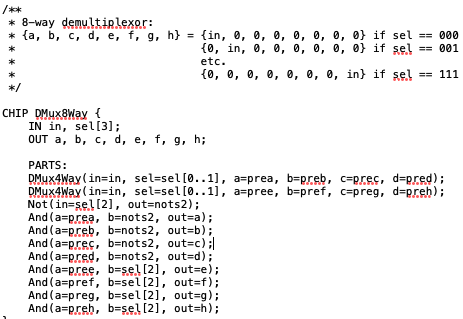

15. Multi-Way/Multi-Bit Demultiplexor (8-Way/1-Bit Demultiplexor)
